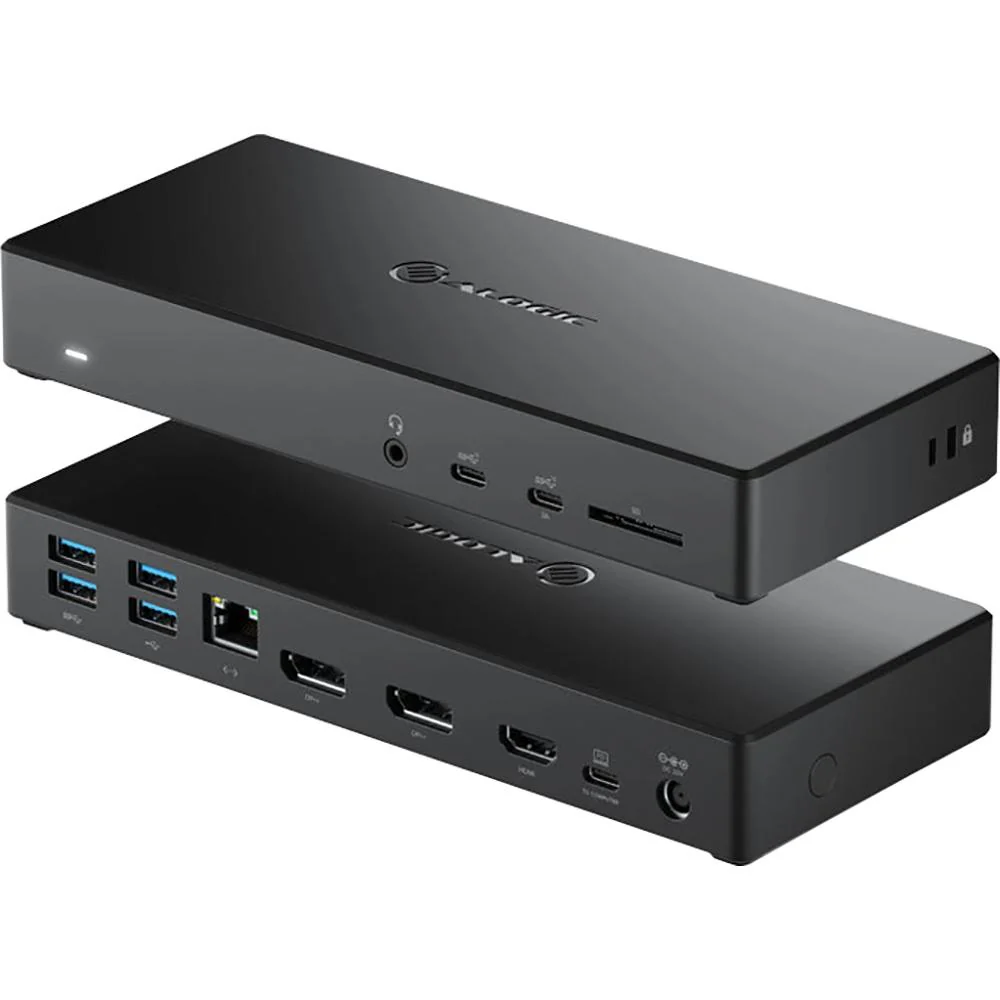

ALOGIC USB-C Triple Display DP Alt. Mode Docking Station - DUCMA3

Triple Display

The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop. Refer to the resolution support table for details on different resolutions supported with the dock.

Comprehensive Connectivity

The MA3 dock supports up to three displays at resolutions of up to 4K. In addition to the ability to connect external monitors; the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports; Gigabit Ethernet; 3.5mm Combo Jack and SD Card The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment. Refer to the resolution support table for details on different resolutions supported with the dock.

100W Laptop Charging/Power Delivery

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays; USB accessories; gigabit ethernet; headphone/Mic and charge your laptop all at the same time.

Specifications:

• Colour: Black
• Materials: ABS
• Input: 1 x USB-C Port
• Output:
• 2 x DisplayPort
• 1 x HDMI
• 2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support
• 2 x USB-A 3.1 Gen1 (5G)
• 2 x USB-A 2.01 x Audio / Microphone Jack
• 1 x RJ45 Ethernet 1Gbps
• 1 x SD Card
• Input: 1 x USB-C Port
• Power: Up to 100W Power Delivery for Laptop Charging
• Resolution: Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4HBR3 with DSC enabled host
• Device Compatibility: Compatible with all computers with a USB-C port (Windows 7 or newer; Mac or Chromebook)
• Compliance: FCC; CE; RoHS
• Product Dimensions (W x D x H): 8.3 x 1.2 x 3.5 in.
• Weight: 0.8 lb
• Warranty: 2 Years
