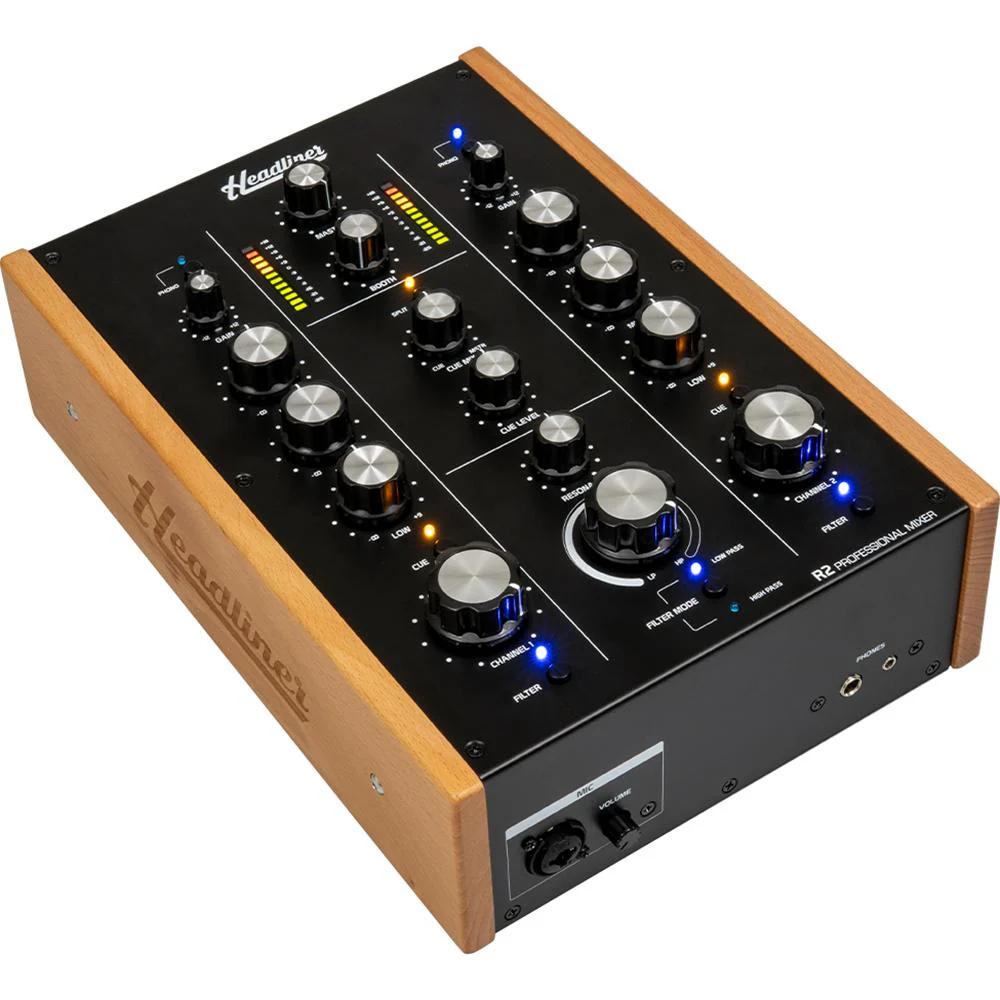

Headliner R2 2-Channel Rotary DJ Mixer (HL90100)

Headliner R2 2-Channel Analog Rotary DJ Mixer

Introducing the Headliner R2, a 2-channel rotary DJ mixer that is perfect for DJ's looking for precise control and a warm sound, without breaking the bank. Don't let the price tag fool you. The R2 is packed with features, like an analog filter and 3-band isolator EQs on each channel,  and uses only high-quality components, including genuine ALPS potentiometers.

Featuring two stereo channels with selectable Line and Phono RCA inputs, each channel on the Headliner R2 comes equipped with gain control with a peak LED, a 3-band isolator EQ, a headphone cue selector, a large channel volume control knob, and a filter activation switch.

The Master channel boasts an analog filter, headphone monitoring, and output control section. The analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls, giving you precise control over your sound. Independent Master and Booth outputs with volume controls, both with balanced XLR and unbalanced RCA connectors, give you the flexibility to connect to any sound system.

The headphone Cue control section is packed with features, including headphones volume control, headphones mix control (Cue/Master), and split monitor switch. You can easily switch between listening to the master output and the cue output, or blend them together in your headphones, giving you complete control over your mix. The high current headphone amplifier with, dual 1/4" and 1/8" jacks, allows you to use any type of headphones you prefer.

The Headliner R2 features genuine ALPS potentiometers, and a sturdy metal enclosure with stained wood side panels for a classic look that will complement any DJ setup. The modular internal construction, coupled with the external power supply connected via locking Mini XLR ensure superior audio performance.

The Headliner R2 is a reliable, high-quality mixer that will give your DJ performances that classic vibe. Whether you're spinning house, techno, or classic funk/soul/disco jams, this fun little mixer is the perfect addition to your setup.

Product Highlights:

2-channel rotary DJ mixer with high-pass and low-pass filters

3-Band Isolator EQ on each channel

Genuine ALPS potentiometers

Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs

Modular internal construction for superior audio performance

Product Features:

Two stereo channels with selectable Line and Phono RCA inputs

Each channel features Gain control with Peak LED, 3-Band Isolator EQ, Headphones Cue selector with LED, channel volume control and filter activation switch with LED

Master channel features analog filter, headphone monitoring and output control section

Analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls

Genuine ALPS potentiometers

Headphone Cue control section features headphones volume control, headphones mix control (Cue/Master), and split monitor switch

High current headphone amplifier with dual 1/4" and 1/8" jacks

Independent Master and Booth outputs with volume controls, balanced XLR outputs and unbalanced RCA outputs

Additional Record output with unbalanced RCA jacks

Dual LED level meters for the Master output

Microphone input with level control on front panel

Sturdy metal enclosure with stained wood side panels for a classic look

Made for classic house or techno DJ’s, or any DJ who loves to spin classic funk, soul, or disco

Modular internal construction for superior audio performance

External split rail power supply connected via locking Mini XLR connector

Push-button power switch on rear panel

Product Specifications:

Microphone Input

Nominal Input Level: -50dBu

Frequency Response: 20Hz - 20kHz (+/- 0.1dB)

THD + N: < 0.1%

Input Impedance: 1.2 kOhm

Line Inputs

Nominal Input Level: -10dBV (-7.8dBu)

Gain Range: -12dB to +12dB

Frequency Response: 20Hz - 20kHz (+0/- 0.5dB)

THD + N: < 0.05%

Input Impedance: 10 kOhm

Phono Inputs

Nominal Input Level: -40dBu (@1kHz)

Gain Range: -12dB to +12dB

Active RIAA equalization

THD + N: < 0.05%

Input Impedance: 47 kOhm

Input Capacitance: 100pF

Single Stage Phono Preamp

Ceramic Capacitors

Main Outputs

Nominal Output Levels, balanced: +4dBu

Maximum Output Level, balanced: +20dBu

Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)

Maximum Output Level, unbalanced: +12dBu

Frequency Response: 20Hz-20kHz (+0/-1.5dB)

Residual Noise: <-86dBu (Line to Master)(A-Weighted)

Dynamic Range: > 100dB (A-Weighted)

Crosstalk: < -65dB

THD + N: < 0.05%

Headphone Output

Maximum Output Level: 70mA/channel into 150Ω

Minimum Load Impedance: 32 Ohms/channel

Power Supply

Type: External with locking mini-XLR connector

Input Voltage: 100-240v ~ 50/60Hz

Output Voltage: +/-15V; 500mA

General

Measurements: 12.6" x 8.6" x 4.2" (320 x 219 x 106 mm)

Weight: 6.15lbs (2.8Kg)
