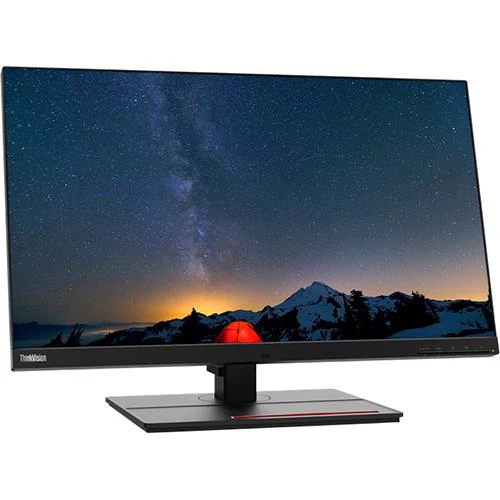

Lenovo ThinkVision P27u-20 27" 4K UHD 3840x2160 60Hz 16:9 4ms IPS Monitor, Black

ThinkVision 27 inch Monitor P27u-20 - For Content Creators Who Need Excellent Color Performance.

If you are a photographer, a video editor, a graphic designer, or a professional who doesn’t like compromises, its time you met ThinkVision P27u-20. The P27u-20 comes with a 3840 x 2160 UHD screen that delivers outstanding image quality and clarity. Its wide IPS screen offers enhanced viewing angles, an excellent contrast ratio.

Further, this monitor has a unique pre-calibrated accuracy, a dual wide color gamut (99.1% DCI-P3 and 99.5% Adobe RGB), and a VESA Display HDR 400 support to provide a realistic visual experience for designers, graphics creators, photographers, and pro users. Made for modern times, the P27u-20 is designed to help you connect, collaborate and manage your work remarkable efficiency.

This monitor comes with an uncompromised Thunderbolt 4 solution that professionals will love. The P27u-20 offers 4K resolution with 1 Gbps Ethernet speed and USB3.2 Gen1. Experience blazing speeds of up to 40 Gbps and industry-leading Thunderbolt 4 ports - 4 inputs and 4 outputs for superb multi-screen connectivity. It also offers up to 100W power delivery, KVM, a USB Hub with 5 Gbps USB data and USB-C 27W for power charging that help boost productivity. This monitor comes with top-of-the-line 2 x 3W built-in speakers for an immersive user-experience.

Product Highlights:

27 inch 4K UHD (3840 x 2160) with IPS display

DCI-P3 and Adobe RGB color

DisplayHDR 400 certified

Thunderbolt 4 input & output

Factory calibrated color accuracy

2 x 3W built-in speakers

Product Features:

Astounding Clarity & Versatility

The versatile P27u-20 monitor delivers a brilliant, consistent performance across a range of creative areas. This pre-calibrated monitor offers DCI-P3 & HDR 4K resolution for stunning UHD performance. It comes with an IPS screen that offers excellent 178° viewing angles and a dual wide color gamut (99.1% DCI-P3 and 99.5% Adobe RGB) to satisfy both video and graphic content creators. Its VESA DisplayHDR 400 offers superb realistic brightness and darkness.

Connect, Collaborate, Manage

The P27u-20 comes with industry-leading Thunderbolt 4 solution. This is a brilliant ‘one cable’ solution that includes Thunderbolt 4 input and Thunderbolt 4 output ports for multi-screen connectivity. With 1 Gpbs Ethernet speed and 5 Gbps USB data support at the same time, this monitor is big on productivity, connectivity and collaborations. The P27u-20 monitor supports 1 Gbps Ethernet speed and USB3.2 Gen1 and works well as a Thunderbolt 4 hub for multiple devices. It supports MAPT, PXE, WOL, vPro and ThinkColor Software. This monitor also features a USB-C 27W port for power charging so you can stay connected effortlessly.

Eco-friendly & Excellent Ergonomics

The P27u-20 has an ENERGY STAR rating of 8, ErP Lot 5 which makes it one of the most eco-friendly monitors in the category. The Smart Light function automatically adjusts brightness for better viewing experience. Relentless seekers of perfection will appreciate its full function stand with a range of lift, tilt, and swivel adjustment options which augments both comfort and productivity.

Product Specifications:

Display

Panel Size: 27-inch

Screen Dimensions (W x H, mm): 608.8 mm x 355.3 mm

Panel Type:

3-side NearEdgeless

In-Plane Switching

Active Area: 596.7 mm x 335.7 mm

Backlight: WLED

Aspect Ratio: 16:9

Resolution: 3840 x 2160

Pixel Pitch: 0.1554 mm x 0.1554 mm

Dot/Pixel Per Inch (DPI/PPI): 163

Viewing Angle (H x V @ CR 10:1): 178° / 178°

Response Time:

4ms (Extreme Mode)

6ms (Normal Mode)

Refresh Rate: 60 Hz

Brightness (Typical): 400 cd/m²

Brightness (Peak): 450 cd/m²

Contrast Ratio (Typical): 1000:1

Dynamic Contrast Ratio (Typical): 3M:1

Color Gamut:

99.5% Adobe RGB (CIE 1931)

99.1% DCI-P3 (CIE 1976)

100% sRGB (CIE 1976)

100% BT.709 (CIE 1976)

83.7% BT.2020 (CIE 1976)

Color Support (Typical): 1.07 Billion

Color Depth: 10-bit (8+FRC)

HDR Compliance: Yes (DisplayHDR 400)

Anti-glare: Yes

Connectivity

Video Signal:

1 x Thunderbolt 4 In

1 x Thunderbolt 4 Out

2 x HDMI 2.0

1 x DP 1.2

Audio Signal: 1 x Audio Out (3.5 mm)

USB Hub: Yes

Ethernet: Yes (10M/100M/1000M)

USB Upstream: 2 x USB3.2 Gen1 (1 by USB Type-B, 1 by Thunderbolt 4)

USB Downstream:

3 x USB3.2 Gen1 (1 x BC1.2)

1 x USB Type-C (Data & Power Delivery)

Multi-Media

Integrated Speakers: Yes (2 x 3W)

Optional Soundbar Support: Yes (PN number: 0A36190)

Special Features

Factory Calibration: Yes (Avg. Delta E<1)

KVM Switch: Yes

Software: Lenovo ThinkColour (Lenovo Display Control Center)

Smart Sensor: Yes (Smart Light)

Others:

Headset Rack

Shading Hood

Power

Power Consumption (Typ. / Max.): 35W / 240W

Power Consumption Sleep/Off Mode: <0.5W

Power Consumption Switch-off Mode: <0.3W

ENERGY STAR Power Consumption (Pon/ETEC): 26W / 97kWh

Power Supply: Internal

USB Type-C Power Delivery (W): Up to 27W4

TBT Power Delivery (W): Yes (Up to 100W)

Smart Power: Yes

Voltage Required: AC 100 to 240 V (50-60 Hz)

Mechanical

Tilt Angle (Front / Back): -5°/ 35°

Swivel Angle (Left / Right): -45°/ 45°

Lift (Max. Range): 135 mm

Pivot: -90°/ 90°

VESA Mount Capability: Yes (100 x 100 mm)

ThinkCentre M Series Tiny Support: Yes, by Tiny Monitor Clamp II (PN: 4XH0Z42451)3 & Tiny VESA Mount II (PN: 4XF0N03161)

ThinkCentre M Series Nano Support: Yes, by Nano Monitor Clamp II (PN: 4XH0Z42451)3 & Nano VESA Mount (PN: 4XF0V81630)

Kensington Lock Slot: Yes

Cable Management: Yes

Bezel Color: Raven Black

Bezel Width (Side): 2.0 mm

Bezel Width (Top / Bottom): 2.0 / 23.6 mm

Dimensions

Size Packed (D x H x W) (mm/inch):

187.0 x 510.0 x 732.0 mm

7.36 x 20.08 x 28.82 inches

Size Unpacked w/ Stand (D x H x W) (mm/inch) (Lowest Position):

219.9 x 421.4 x 613.8 mm

8.66 x 16.59 x 24.16 inches

Size Unpacked w/ Stand (D x H x W) (mm/inch) (Highest Position):

219.9 x 556.4 x 613.8 mm

8.66 x 21.90 x 24.16 inches

Size Unpacked w/o Stand (Head Only) (D x H x W) (mm/inch):

52.9 x 368.8 x 613.8 mm

2.08 x 14.52 x 24.16 inches

Weight Packed (kg / lbs.): 12.8 kg / 28.1 lbs.

Weight Unpacked (kg / lbs.): 8.0 kg / 17.6 lbs.

Weight (Monitor Head Only) (kg / lbs.): 5.5 kg / 12.0 lbs.

What's in the Box

Monitor with stand

1 x Power cable (1.8m)

1 x DP cable (1.8m) for US & Canada only

1 x USB Type-C to Type-A cable (1.8m)

1 x Thunderbolt 4 cable (1.0m, 40 Gbps)

Factory calibration report

Quick setup guide

Certification

ENERGY STAR Certification: Yes

CCC: Yes

TCO: 8.0

TCO Edge: 2.0

EPEAT: Gold

RoHS (EU 2011/65/EU): Yes

Windows Certification: Windows 7, Windows 10

China Energy Efficiency Standard: Tier 1

TÜV Rheinland Eye Comfort: Yes
