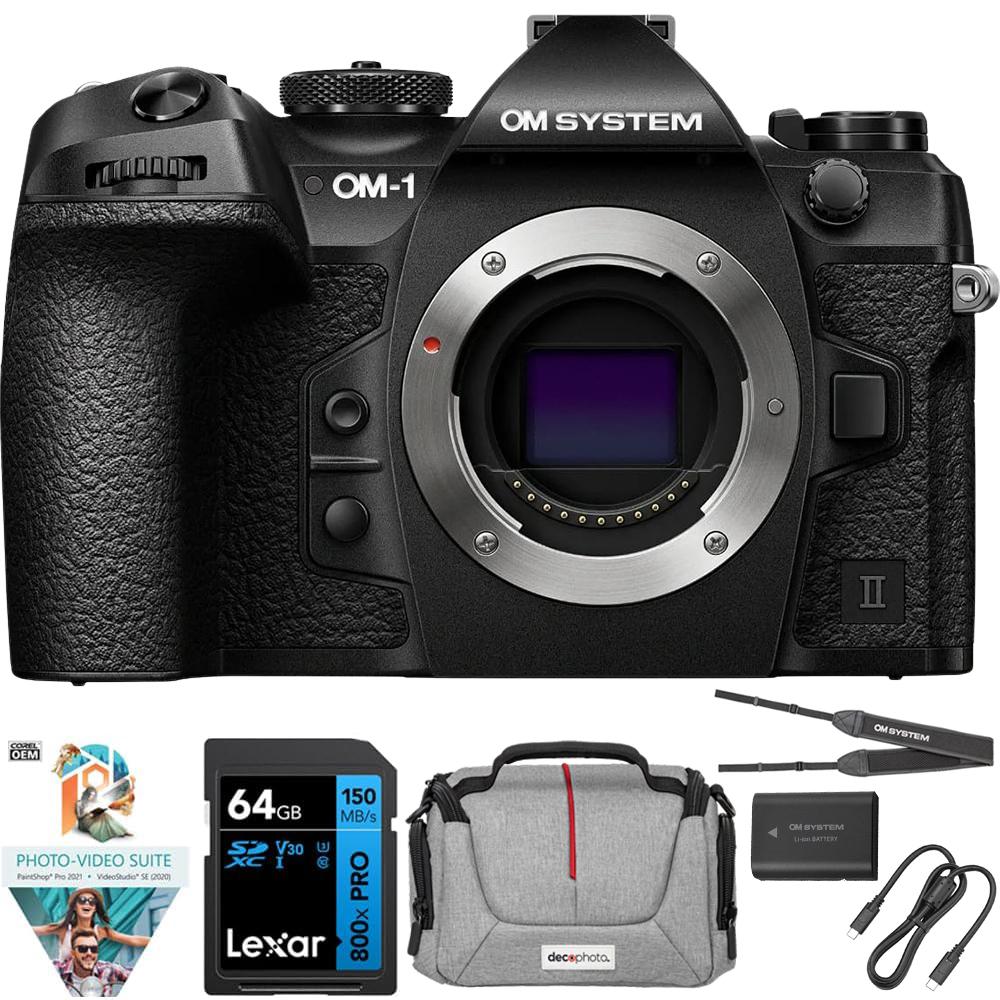

OM Systems Olympus OM-1 Mark II 20MP 4K Mirrorless Camera Body + 64GB Memory Bundle

The OM-1 Mark II is a statement of blazing fast speeds; unparalled computational capabilities and tactile usability with refinements through out the camera. What the OM-1 Mark II presents is a true wonder of outdoor photography equipment that will perform wherever you go.

The OM SYSTEM OM-1 Mark II is a statement of speed; state-of-the-art computing power and exceptional ease of use. It's a true marvel of nature; outdoor and wildlife photography; ready to work wherever your journey takes you.

Capture every moment with lightning-fast autofocus; large buffer memory for high-speed continuous shooting; Pro Capture for ultra-fast image capture before the shutter; and advanced AI Scene Recognition AF for precise tracking of birds; animals; and humans. The OM-1 Mark II also features industry-leading computer-aided photography tools; including Live GND (in-camera graduated ND filter) and Handheld High Res Shot; giving the photographer creative flexibility and sharper detail right on the spot.

The compact yet rugged camera is IP53 weatherproof - splash-proof; frost-proof and dustproof - and can withstand even the most challenging conditions. With 8.5 stops of image stabilization; excellent ergonomics; and impressive battery life; the OM-1 Mark II is the perfect companion for photographers who need a lightweight; rugged system that doesn't compromise on quality.

Product Features:

• Second generation of the compact and lightweight Micro Four Thirds camera
• 20.4 MP stacked BSI Live MOS sensor and TruePic X processor
• Synchronized 5-axis image stabilization with 8.5-stop compensation
• 1053-point phase-detection cross-quad pixel AF
• Up to 120 fps in raw format
• Best-in-class computational functions incl. Live Graduated ND filter
• IP53-certified weatherproofing

Specifications:

Type

• Body material: Magnesium alloy body
• Lens mount: Micro Four Thirds

Image Sensor

• Type: 4/3" Stacked BSI Live MOS sensor
• Effective pixels: 20.4 Megapixels
• Full resolution: 22.9 Megapixels
• Aspect ratio & area: 4:3 / 17.3 x 13.0mm
• Filter array: Primary colour filter (RGB)

Engine

• Type: TruePic X

Filter

• Dust reduction filter: Supersonic Wave Filter

Viewfinder

• Type: Electronical Viewfinder
• Pixel number: 5760K dots
• Magnification: Max. 1.65x with a 50mm lens set to infinity at -1 dioptre (depending on selected viewfinder style)
• Angle of view: Approx. 100%
• Style: 3 styles selectable
• Brightness adjustment: Adaptive Brightness Technology / Manual settings: +/- 7 levels
• Correction of color temperature: +/- 7 levels
• Diopter adjustment: Equipped -4.0 - +2.0 diopters / built-in type
• Eye point: 21mm at -1 dioptre from eyepiece lens
• S-OVF: Expands the Live View dynamic range

Monitor

• Monitor type: Vari-angle LCD - Touch Panel
• Resolution: 1620K dots
• Monitor size: 7.6cm / 3.0'' (3:2)
• Brightness adjustment: +/- 7 levels
• Color balance: +/- 7 levels
• Touch Control functions: AF area enlargement; AF area selection; Art Filter; Enlargement; Enlargement playback; Frame forward/backward; Live Guide; Shooting mode; Shutter release; Subject selection; Super Control Panel; Wi-Fi connection

Level Gauge

• Detection: 2-axis
• Display: Rear display and viewfinder

Live View

• Field of view: Approx. 100%
• Dynamic range expansion: When in HDR1 or HDR2
• Magnification levels: 3 / 5 / 7 / 10 / 14x
• Live ND: 128 S/M mode only; flash can not be used; ISO up to 800; the maximum shutter speed is 1/60 (when ND2 is set) and the speed drops if the number of ND steps is raised.
• Live GND: Available

Super Control Panel

• Displayed information: AE bracketing; AEL notification; AF frame; Aperture value; Battery indicator; Colour saturation compensation value; Colour space; Contrast compensation value; Drive mode; Exposure compensation indicator; Exposure level view; Exposure mode; Face detection; Flash compensation value; Flash mode; Focus mode; Gradation; Histogram; Internal temperature warning; ISO; Metering mode; Noise reduction; Number of storable frames; Record mode; Sharpness compensation value; Shutter speed; White balance; White balance compensation value

Image Stabiliser

• Type: Sensor shift
• Modes: Five-dimensional; vertical or horizontal activation; automatic
• Live View stabilisation: Available
• Effective Compensation Range: Up to 8.5 EV steps (Body only); Up to 8.5 EV steps Sync IS

Focusing System

• Method: TTL phase difference detection system; contrast detection system
• Predictive AF: Available
• Manual focus: Available; with enlarged focusing area; focus peaking and focus indicator
• Focus areas: 1053 points / cross-type phase detection AF; 1053 points / contrast AF; All target; Single target (1 point); Small target (9 points); Cross target (39 points); Middle target (63 points); Large target (165 points) ; Custom target (AF area and its increment steps selectable) Number of saved custom target settings: 4
• AF illuminator: Equipped
• AF lock: Available; Locked by first position of shutter release button in single AF mode; AE/AF lock button (customised)
• AF targeting pad: Available (activate/deactivate with double tap on rear monitor)
• AF working range: -8 - 19EV (ISO approx.100; with a f/1.2 lens)
• Focus limit: Available
• Separate AF-On button: Available
• AF tracking: Available; Available in continuous AF mode
• Focus Bracketing Mode: Compatible with: All Micro Four Thirds AF lenses
• Number of images: 3 - 999 shots
• Step size: 10 levels
• Modes: AF Tracking; Bracketing; Continuous AF; Manual focus; Preset MF; Single AF; Stacking
• Focus peaking:
• Back light effect: On / Off
• Color selection: White; black; red; yellow
• Intensity: High / Normal / Low
• Intelligent Subject Detection AF: Aircrafts; Birds; Bullet trains; Cats; Dogs; Formula cars; Helicopters; Human; Motorcycles; Ralley cars; Standard trains; Steam locomotives
• Focus Stacking Mode:
• Technology: 3-15 images are taken at different focus points and automatically composited together into a single image
• Compatible Lenses: M.Zuiko Digital ED 100-400mm F5.0-6.3 IS; M.Zuiko Digital ED 12-100mm F4 IS PRO; M.Zuiko Digital ED 12-40mm F2.8 PRO; M.Zuiko Digital ED 12-40mm F2.8 PRO II; M.Zuiko Digital ED 12-45mm F4 PRO; M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO; M.Zuiko Digital ED 300mm F4 PRO; M.Zuiko Digital ED 30mm F3.5 Macro; M.Zuiko Digital ED 40-150mm F2.8 PRO; M.Zuiko Digital ED 40-150mm F4.0 PRO; M.Zuiko Digital ED 60mm F2.8 Macro; M.Zuiko Digital ED 7-14mm F2.8 PRO; M.Zuiko Digital ED 8-25mm F4 PRO; M.Zuiko Digital ED 8mm F1.8 Fisheye PRO; M.Zuiko Digital ED 90mm F3.5 Macro IS PRO
• Compatible Converter: M.Zuiko Digital 1.4x Teleconverter MC-14; M.Zuiko Digital 2x Teleconverter MC-20

Exposure System

• Modes: Aperture priority; Bulb; Custom 1; Custom 2; Custom 3; Custom shooting; HDR; Live Composite; Manual; Movie; Programme automatic; Shutter priority; Time
• Exposure compensation: +/- 5 EV ( 1; 1/2; 1/3 steps )
• Exposure bracketing: 2 / 3 / 5 frames ( +/- 1/3; 2/3; 1 EV steps ); 7 frames ( +/- 1/3; 1/2; 2/3 EV steps )
• ISO bracketing: 3 frames ( 1/3; 1/2; 1 EV steps )
• HDR bracketing: 3 / 5 frames ( +/- 2 / 3 EV steps ); 7 frames ( +/- 2 EV steps )
• AE lock: Available - Shadow Adjustment Technology; Flicker Scan: Available for M; S and silent mode (can be confirmed in Live View)
• Anti-Flicker Shooting function: Available

Multi-Exposure

• Max. number of frames: 2 frames (shooting)
• Max. number (editing): 3 frames (editing)
• Auto gain control: Available
• Frame assistance: Live View

Light Metering

• Method: TTL open aperture light metering
• Zones: 324 zones Multi-pattern Sensing System
• Detection range: -2 - 20 EV (f2.8; ISO 100)
• Modes: Centre weighted metering; ESP light metering; Highlight; Shadow; Spot metering
• Histogram in shooting mode: Available

Art Filter

• Modes: Bleach Bypass; Cross Process; Diorama; Dramatic Tone; Gentle Sepia; Grainy Film; Instant Film; Key Line; Light Tone; Pale & Light Colour; Partial Colour; Pin Hole; Pop Art; Soft Focus; Vintage; Water colour
• Variation / Effect: Available

Sensitivity

• Auto: ISO LOW - 102400 (upper default ISO 25600)
• Manual: ISO LOW - 102400 in 1/3 or 1 EV ISO steps

Shutter

• Shutter type: Computerised focal-plane shutter
• Durability: 400000 shots
• Modes: Bracketing; Self timer; Sequential shooting; Single frame

Shutter Speeds

• Shutter speed range: 1/8000 - 60s (in 1/3; 1/2; 1 EV steps)
• Bulb mode: Up to 30 minutes (selectable longest time in the menu; default: 8 minutes)
• High res shot:
• Shutter type: Electronic shutter
• Shutter speed: 1/8000 - 60s
• Start delay: 0; 1/8; 1/4; 1/2; 1; 2; 4; 8; 15. 30s
• Resolution: JPEG: 10368x7776 / 8160 x 6120 / 5760 x 4320 RAW: 10368 x 7776 High Res RAW Recording bit: 12bit / 14bit; Equivalent to 80M / 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift); Available in P/A/S/M mode
• Handheld High res shot:
• Shutter type: Electronic shutter
• Shutter speed: 1/8000 - 60s
• Resolution: JPEG: 8160 x 6120 / 5760 x 4320 RAW: 8160 x 6120 High Res RAW Recording bit: 12bit / 14bit; Equivalent to 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift); Available in P/A/S/M mode; Flash can not be used
• Anti-shock mode:
• Shutter type: Electronic first curtain shutter
• Shutter speed: 1/320 - 60s
• Start delay: 0; 1/8; 1/4; 1/2; 1; 2; 4; 8; 15; 30s
• Silent mode:
• Shutter type: Electronic shutter
• Shutter speed: 1/32000 - 60s
• Start delay: 0; 1/8; 1/4; 1/2; 1; 2; 4; 8; 15. 30s
• Flicker Scan:
• Stills: 1/7634 - 1/50s
• Movies: 1/250 - 1/30s

White Balance

• Auto Flash adjustment: Off / Auto WB / Flash
• Keep warm color: On / Off
• White balance bracketing: 3 frames / +/- 2; 4; 6 mired steps
• Custom WB: 1 setting can be registered at Kelvin temperature (2000K - 14000K)
• Manual White balance (One-Touch): Available
• One-touch white balance: 4 custom settings can be registered
• Preset values: Flash; Flourescent 1; Overcast; Shade; Sunlight; Tungsten; Underwater

Sequence Shooting

• Speed: Approx. 10fps (selectable 1-10fps)
• Anti-shock mode:
• Speed: Approx. 10fps (selectable 1-10fps)
• Pro Capture mode:
• Speed: Approx. 20fps (selectable 5; 10; 15; 20fps)
• Speed SH1: Approx. 120fps (selectable 60; 100; 120fps)
• Speed SH2: Approx. 50fps (selectable 25; 50fps)
• Silent mode:
• Speed: Approx. 20fps (selectable 5; 10; 15; 20fps with blackout)
• Speed SH1: Approx. 120fps (selectable 60; 100; 120fps without blackout)
• Speed SH2: Approx. 50fps (selectable 12.5; 16.7; 25; 50fps without blackout)
• Conditions: Memory card: KIOXIA KSDXU-A064G; When using the M.Zuiko Digital ED 12-40mm F2.8 PRO II; Low ISO processing - Priority is given to sequential shooting
• Max. number of frames: All values are approximate
• RAW buffer: 213 frames / 120fps
• 10fps: RAW: 139 / JPG (LF): 169
• 20fps: RAW: 108 / JPG (LF): 116
• 50fps: RAW: 96 / JPG (LF): 97
• 120fps: RAW: 92 / JPG (LF): 92

Image Processing

• Art Filter bracketing: Available
• Color space: sRGB / AdobeRGB
• Fisheye compensation: Available when M.Zuiko Digital ED 8mm Fisheye PRO is attached Angle of view adjustable in 3 levels Compensation automatically ON when using Underwater Modes; available (can be confirmed in Live View)
• Gradation: 4 levels (auto; high key; normal; low key)
• Highlight & Shadow control: Highlight / Shadow / Midtone (+/- 7 steps)
• Black & White filter: Yellow; Orange; Red; Green
• Black & White toning: Sepia; Blue; Purple or Green in Black & White mode
• Contrast: 5 levels
• Saturation: 5 levels
• Sharpness + Contrast: 5 levels
• Tele converter effect: 2x

External Flash Control

• Modes: 2nd curtain and slow synchronisation; Auto; Fill-in for exclusive flash; Manual; Red-eye reduction; Slow synchronisation
• Type: AUTO; FP MANUAL; FP TTL AUTO; MANUAL; TTL AUTO
• X-sync speed: 1/250s / 1/8000s (Super FP Mode)
• Intensity: +/- 3 EV ( 1/3; 1/2; 1 EV steps )
• Compatible external flash: FL-LM3; FL-600R; FL-900R; STF-8; FL-700WR

Wireless Flash Control

• Modes: Auto; FP Manual; FP TTL Auto; Manual; TTL Auto
• Control method: Triggered and controlled (Olympus Wireless RC Flash system)
• Group setting: 4 groups
• Compatible external flash: FL-LM3; FL-600R; FL-900R; STF-8; FL-700WR
• Radio control:
• Radio wireless control: Available when attaching optional flash commander.
• Number of channels: 4 channels
• Group setting: 3 groups
• Compatible commander: FC-WR; FL-700WR
• Compatible receiver: FL-700WR; FR-WR + wireless RC system flash
• Number of channels: 4 channels

Recording Formats

• JPEG: Applied
• RAW: 12bit
• RAW & JPEG: Applied parallel recording
• Aspect ratio: 4:3 / 3:2 / 16:9 / 6:6 / 3:4

Still Image Recording

• DCF: Applied
• Dual SD card settings: Standard; Auto Switch; Dual Independent; Dual Same; When two cards are inserted; card to be saved onto or to be viewed can be designated.
• EXIF: 2.31
• RAW: Applied

Image Size

• RAW: 5184 x 3888
• JPEG: 5184 x 3888 - 1024 x 768

Movie Recording System

• Recording format: MOV(MPEG-4AVC/H.264)/ MOV (HEVC/H.265)
• Picture mode: Flat; OM-Log400; HLG (View assist compatible)
• Time code: Rec run / Free run; Drop frame / Non-drop frame
• Exposure Modes: Aperture priority; Manual; Programme automatic; Shutter priority
• Image Stabilisation Mode: Applied Sensor shift (5-axis); M-IS1 (Image sensor shift and electronic image stabilizer with multi motion IS); M-IS2 (Image sensor shift with multi motion IS)
• MOV(MPEG-4AVC/H.264):
• 3840x2160 (4K: 30p; 25p; 24p / LongGOP (approx. 102 Mbps)
• 3840x2160 (4K) -2: 60p; 50p / LongGOP (approx. 202 Mbps)
• 4096x2160 (C4K): 30p; 25p; 24p / LongGOP (approx. 102 Mbps)
• 4096x2160 (C4K) -2: 60p; 50p / LongGOP (approx. 202 Mbps)
• 1920x1080 (FHD): 30p; 25p; 24p / ALL-I (approx. 202 Mbps)
• 1920x1080 (FHD) -2: 60p; 50p / LongGOP (approx. 52 Mbps)
• 1920x1080 (FHD) -b: / LongGOP (approx. 27 Mbps)
• MOV (HEVC/H.265):
• 3840x2160 (4K): 30p; 25p; 24p / LongGOP (approx. 77 Mbps); 60p; 50p / LongGOP (approx. 152 Mbps)
• 4096x2160 (C4K): 30p; 25p; 24p / LongGOP (approx. 77 Mbps); 60p; 50p / LongGOP (approx. 152 Mbps)
• 1920x1080 (FHD): 30p; 25p; 24p / ALL-I (approx. 82 Mbps); 60p; 50p / ALL-I (approx. 162 Mbps); / LongGOP (approx. 42 Mbps); / LongGOP (approx. 22 Mbps)
• Maximum Recording Time: Unlimited

Movie Specialties

• Art Filter: Bleach Bypass; Cross Process; Diorama; Dramatic Tone; Gentle Sepia; Grainy Film; Instant Film; Key Line; Light Tone; Pale & Light Colour; Partial Colour; Pin Hole; Pop Art; Soft Focus; Vintage; Water colour
• Fast motion: Available
• Flicker Scan: Available in M mode (can be confirmed in Live View)
• HDMI Live View:
• Modes: Monitor / Record / RAW
• Monitor mode: Video signal and info display is processed
• RAW mode:
• Compatible external device: ATOMOS NINJA; NINJA ULTRA; NINJA V; NINJA V+
• Record mode: Only video signal is processed
• High-Speed Recording: 1920x1080 (MOV) / 240fps; 1920x1080 / 120fps; 1920x1080 / 100fps
• Vertical Video: Available
• Time lapse: 4k; 1080p; 720p / 5; 10; 15; 30fps; Max. number of frames: 9999
• Slow motion: Available

Sound Recording System

• Recording format: High quality sound recording (Stereo linear PCM/24-bit; Sampling frequency 96kHz); Stereo PCM/16bit; 48kHz; Wave Format Base
• Speaker: Equipped
• Image footage: 30s
• Internal microphone: Stereo
• Microphone functions: Recording Volume; Volume limiter; Wind Noise Reduction

View Images

• Modes: Calendar; Index; Movie; Single; Zoom
• Shooting information: Off / On
• Highlight/Shadow point warning: Available
• Histogram in playback mode: Available
• Auto rotation: Available

Erase / Protect / Copy Function

• Erase modes: Single; All; Selected
• Image protect mode: Single frame; Selected frames; All Frames; Release protect (Single/All selected)

Image Editing

• Editing functions: Aspect ratio; Black & White; Correction of brightness; Correction of colour balance; Correction of saturation; RAW data edit; Red-eye reduction; Resize; Sepia; Shadow Adjustment; Trimming

Customisation Options

• Programmable button: Equipped
• Fn Button: Equipped
• My Mode: 4 settings storable (Can be set to mode dial.)
• Factory reset: Full / Basic
• Menu languages in camera: Czech; Dutch; English; Finnish; French; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Simplified Chinese; Spanish; Swedish; Thai; Traditional Chinese; Turkish

Interface

• Earphone jack: 3.5 ø mm mini-jack
• Synchro socket: Equipped
• HDMI: Applied Micro connector (Type D)
• Microphone jack: 3.5 ø mm mini-jack
• USB 3: Type C
• Wireless connectivity: Bluetooth; Wi-Fi
• Communication method: Bluetooth Low Energy Ver.4.2
• Media: SD Memory Card (SDHC; SDXC; UHS-I; UHS-II compatible) Class 10 or higher SD card is recommended for movie shooting UHS-II or UHS-I U3 card is recommended for 4K; C4K; ALL-I shooting.
• SAR: 0.52W/kg
• Tethered control: Available USB cable (camera operation by both PC or camera controls); Wi-Fi (transfer of recorded images to PC via access point; 5GHz and 2.4GHz available)

Wi-Fi Functions

• Easy Connection: QR code setting
• Wireless Shooting: Bulb mode; Live Composite; Live View; Movie recording; P/A/S/M exposure modes; Power off; Rec View; Self timer; Short movie; Touch AF & Shutter; Zoom

Power Supply

• Image shooting: 520 shots (using BLX-1 under CIPA testing conditions) 1100 shots (using quick sleep mode; under Olympus testing conditions based on CIPA test standards)
• Movie recording: 90min (standard JEITA conditions) 160min (when zoom and other operational functions are not used)
• Battery: BLX-1 Lithium-Ion Battery
• Internal Charging: USB
• Sleep mode: 1; 3; 5min. and off selectable.
• USB bus power: USB PD bus power can be used (PD compliant camera: Rev 3.0 Ver 1.0a)
• USB charging: Performance varies depending on different USB devices

Environment

• Humidity: 30 - 90% operation humidity / 10 - 90% storage humidity
• Temperature: -10 - 40 degreeC Operating temperature / -20 - 60 degreeC storage temperature

Exterior

• Available Colours: Black

Dimensions / Weight

• Width: 138.8mm
• Depth: 72.7mm
• Height: 91.6mm
• Weight: 599g (including battery and memory card)
• Weight (body only): 511g (body only)
